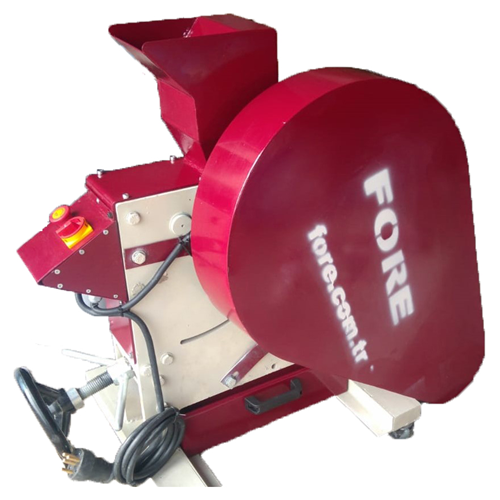

FR-AG 267
Explanation:
Jaw Crusher is used for the process of crumbling massif natural rock, mineral and mineral samples to millimetric dimensions by breaking and breaking down. It is very useful in sample preparation in laboratories and industrial facilities.
Application examples: alloys, basalt, cement clinker, ceramics, ceramic powder, coal, coke, building materials, feldspar, glass and various materials.
It has a base structure that will sit balanced on the floor, it can be screwed to the floor when necessary, or wheel connections can be made so that it can become mobile.
Samples up to 90 (ninety) millimeters in diameter can be fed to the jaw crusher, and after crushing, all samples can be reduced by at least 75% to 2 millimeters or lower.
The crushing capacity is approximately 200 kg per hour and is suitable for continuous material supply. Its engine has a power of 3 kW horsepower.
Jaw Crusher; feeding Hopper, Body, collection hopper consists of three main parts. All of these main parts are made of durable and long-lasting metal alloy material (steel or similar), and all are painted with a paint that is resistant to impact and scratches.
The feed Hopper of the jaw crusher has an interior design that allows users to put their hand inside and prevent the material Fed to the crusher from bouncing back by hitting the jaws, it is also connected with the hinge to the main body so that it can be easily opened during cleaning.
The feed Hopper of the jaw crusher can be locked into the body with a lock mechanism to prevent accidental opening of the crusher during operation, and has a safety device that will allow the crusher to stop instantly if the lock is opened manually.
The body of the jaw crusher is made in such a way that it does not leak dust to the outside during its operation, the noise emission level is a maximum of 85 dB according to the working environment.
The mechanical parts that move to the crusher jaws to perform the crushing process are driven by a V-belt system connected to the engine, and there is also a central lubrication system for all moving parts that is easy to maintain.
It has an electronic-mechanical equipment that can protect itself from situations such as opening the device during Operation, squeezing the feed material between the crusher jaws and overheating the crusher and stopping its operation instantly.
The device has a body structure suitable for easy removal of the jaws from where they are installed for reasons such as cleaning, maintenance or replacement.
The material of crusher’s jaw crusher grinder is 16-18 1.5 chrome manganese steel. Crusher’s jaw crusher wear plates are made of 450 Brinell material.
The opening between the jaws can be adjusted between 0-15 mm and without interruption.
Reset adjustment can be made for the distance between the jaws, and both the Zero Point and the distance between the jaws can be easily read from the outside with an analog indicator.
At the bottom of the jaw crusher is a collection container.
