Product code: FR-AS 059
Explanation:
The ductility of bitumen, that is, is used to determine the distance at which a bitumen briquette can creep / stretch under controlled conditions before breaking.

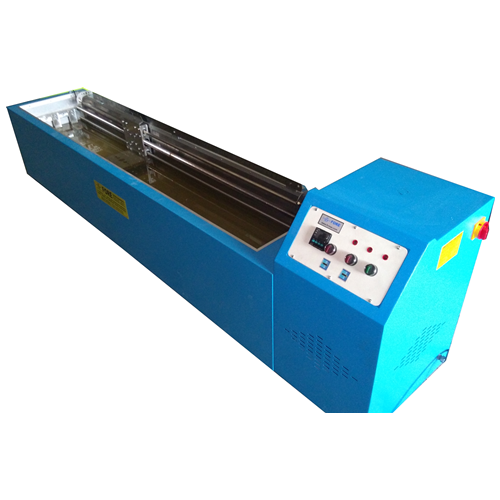

The ductilometer basically consists of a moving carrier moving along guide paths.
The carrier is moved by an electric motor inside a large tank equipped with a digital thermostat, electric heater and pump unit.
The ductility tester works automatically with a speed of 50mm/min, and the maximum moving distance is 1500 mm.
The entire tank is made of stainless steel with fiberglass insulation and the outer frame is electrostatic powder coated.
The water bath temperature is kept constant at 25 °C ± 0.5 °C with a digital thermoregulator.
4 different models are produced: Standard ductility Tester, ductility Tester with cooling system, forced ductility Tester and forced ductility Tester with cooling system.
Ductilometer with cooling system is used for tests with water temperature from 5 °C to + 25 °C and is equipped with integrated cooling unit.
Forced ductility Tester has 3 load cells. Its speed can be adjusted from 1 to 100 mm/min by servo motor.
3 samples can be tested simultaneously with all models.
It comes with 3 briquette molds and bottom plate.
