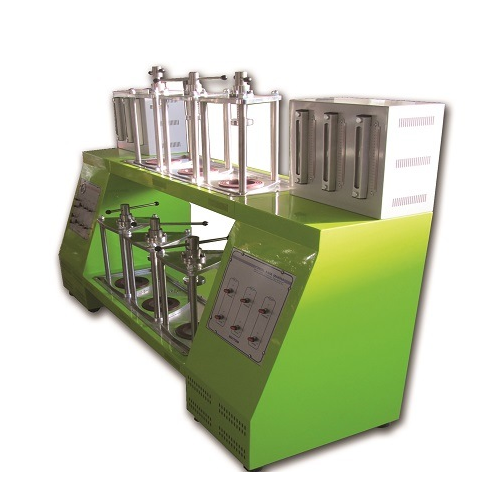

| FR-T 2.410 | Concrete Impermeability Test Set, Quantitative Measurement Without Equipment |
Explanation:
In hardened concrete samples, it is used to determine the depth of water treatment under pressure.
Quantitative measurement is available in four models with 3 and 6 sample capacities with or without equipment. 150 and 200 mm cube or 100×200 mm and 150×300 mm cylinder samples can be tested.
Water pressure up to 12 bar can be applied to the sample with a precision of 0.2 bar. The water pressure obtained by applying compressed air pressure to the water tank is controlled by a pressure regulator with a pressure gauge.
All sample cells of the device are made of aluminum material. The device is resistant to maximum pressure of 15 bar.
In models with quantitative measurement equipment, the depth of water processing can be measured indirectly with the help of brutes on the device. Each cell to which the samples are connected has 3 impermeability seals. All models are produced in accordance with the relevant standard provisions.
A compressor is supplied with the device. Compressor 8 bar, 25 liter capacity.2 Hp power, air intake 192 l / min, engine speed 2800 rpm.
